Custom Outdoor PVC Waterproof Wedding Marriage Activity With Wind Load 100 ~120Km/H
1. Application of Wedding Tent:
Widely used for party, outdoor exhibition, outdoor wedding, church, trade fair, celebration, restaurant,sports event, temporary warehouse, storage and workshop.
2. Technical Parameter of Marriage Activity:
| A-Frame Tent Type for Party Event |
| Model | Width | Length | Bay distance | Side height | Ridge height | Max. wind load |
| JN006 | 6m | Unlimited | 3m | 2.70m | 3.90m | 80km/h |
| JN008 | 8m | Unlimited | 3m | 2.70m | 4.30m | 80km/h |
| JN010 | 10m | Unlimited | 3m | 2.70m | 4.70m | 80km/h |
| JN12 | 12m | Unlimited | 5m | 3.00m | 4.90m | 100km/h |
| JN015 | 15m | Unlimited | 5m | 4.00m | 6.40m | 100km/h |
| JN018 | 18m | Unlimited | 5m | 4.00m | 6.90m | 100km/h |
| JN020 | 20m | Unlimited | 5m | 4.00m | 7.20m | 100km/h |
| JN025 | 25m | Unlimited | 5m | 4.00m | 8.00m | 100km/h |
| JN030 | 30m | Unlimited | 5m | 4.00m | 8.90m | 100km/h |
| JN040 | 40m | Unlimited | 5m | 4.00m | 10.50m | 100km/h |
| JN050 | 50m | Unlimited | 5m | 4.00m | 12.00m | 100km/h |
3. System Features:
1.Four channel aluminum frame, hard pressed extruded reinforced aluminum
2.With extra eave/ridge braces to strengthen the frame over 20m span width
3.No poles inside, 100% interior space is available
4.Galvanized steel connection parts
5.Fabric is fire retardant
6.Bar tensioning roof system
7.Interchangeable parts between sizes
8.Wind load 100km/h

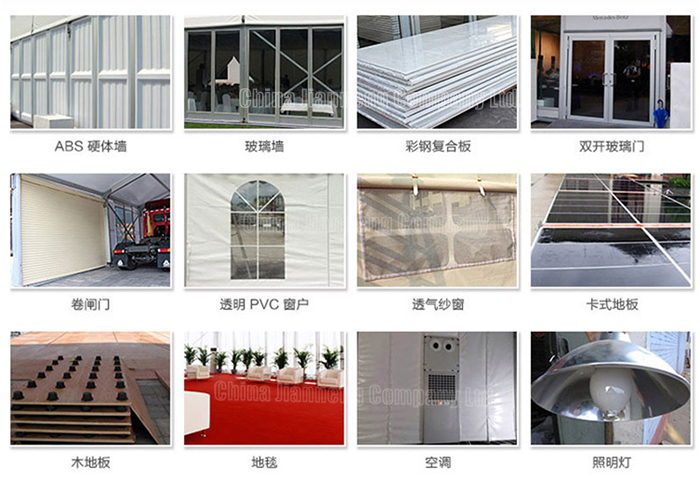

9.Full accessories available such as hard solid wall system,glass door units etc.
4. Frame Material
1) Hard pressed extruded aluminum GB6061/T6(13HW).
2) Connector is made of zinc powder-coated steel.
3) The frame is strong,durable,light in weight,not easy to rust and distort.
5. Cover Material
1) Double PVC-coated polyester textile.Any color is available.
2) Waterproof, flame retardant to DIN4102 B1, M2, UV resistant.
3) 750g/sqm, 850g/sqm PVC for roof cover, 650g/sqm PVC for sidewall.
4) The maximum allowed wind speed is 102km/h.
6. FAQ:
Q1.Does your company accept customized tent?
A:Yes, we can make the tent according to our customers different need.
Q2.Does your company is a factory?
A:Yes, we are a factory, so our price is really reasonable, but with high quality.
Q3. Does your company provide any help to install the tent?
A:Yes, usually we will send manul instruction and CD to help our customers to install the tent.
Q4. Does your tent can move to the other place after set up?
A:Yes, the main frame of our tent is aluminum, so it is light in weight but with high strength, that is very easy to set up and dismantle.
